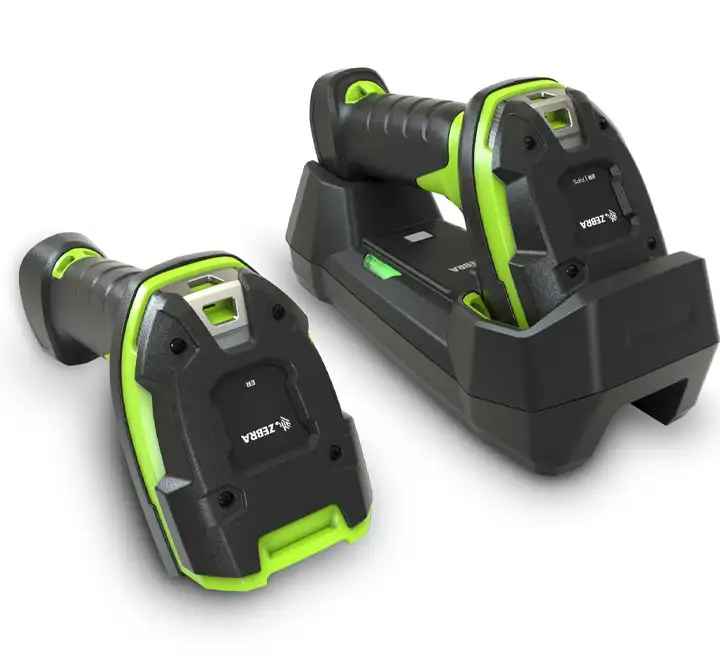

Zebra ultra-rugged scanners are built for the unique challenges of manufacturing and warehouse tasks. These scanners stand up to harsh conditions, read at astonishing lengths and speeds, and give workers nonstop, full-shift power.
| Brand |
|---|
| Dimensions | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.7 cm W x 14.2 cm D |
| Weight | Corded: 11.5 oz./327 g Cordless: 15.0 oz./424 g |
| Input Voltage Range | Host powered: 4.5 VDC min., 12.6 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max. |
| Operating Current | LI3608-ER (corded): 250 mA (RMS typical) |
| Standby Current | LI3608-ER (corded): 110 mA (RMS typical) |
| Color | Industrial Green |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
