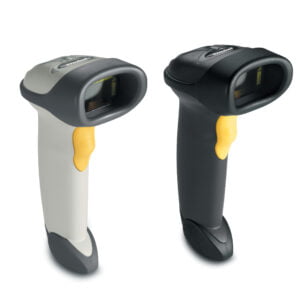

This moderately-priced, high-performance handheld 1D barcode scanner is best suited to applications in retail and healthcare. The LS2208 is designed for continuous usage all day, which significantly reduces downtime and repair costs. It provides accurate, first-time scanning. And since it is always ready for the next scan, the LS2208 can shorten check-out lines, improve customer service and increase productivity.
| brands |
|---|
| Dimensions | 6.0 in. H x 2.5 in. W x 3.3 in. D 15.2 cm. H x 6.4 cm. W x 8.5 cm. D |
| Weight | 5.3 oz./150.0 g |
| Input Voltage Range | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Operating Current at Nominal Voltage (5.0V) | 175 mA (typical) |
| Standby Current (idle) at Nominal Voltage (5.0V) | 90 mA (typical) |
| Color | Cash Register White, Twilight Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| User Indicators | Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume) |
You must be logged in to post a review.
Newland Scanner HR22 Dorada II 2D CMOS Handheld Reader with 3.5 mtr. coiled USB cable and foldable smart stand NWLNLS-HR2280-SF
Technical specifications
Data Capture
1D All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc.
2D All major 2D symbologies, including PDF417, QR Code, Data Matrix, etc.
Image Sensor 1280×800 CMOS
Resolution ≥5mil
Depth of Field EAN 13 (13mil) 50-540mm
Depth of Field Code 39 (5mil) 65-260mm
Depth of Field Code 128 (10mil) 38-411mm
Depth of Field DataMatrix (10mil) 40-250mm
Depth of Field QR (15mil) 20-320mm
Scan Angle Roll 360°; Pitch ±60°; Skew ±60°
Minimal Print Contrast 20%
Physical
Battery Type 3.7V 900mAh rechargeable Li-ion battery
Current Operating/Standby 280mA (Bluetooth is on)/11 mA
Dimensions (mm) 88.0(L) × 46.0(W) × 24.5(H) mm
Expected Battery Life 5 hours of continuous operation (scan once per 6s)
Interfaces Type-C USB, Bluetooth HID/SPP/BLE profiles
Notifications Beep, LED and vibration
Weight 63g
Wireless
Wireless Standards 2.4 – 2.5GHz ISM band, compatible with Bluetooth 4.0/3.0/2.1+EDR
Bluetooth Transmission Range 50m (open space)
Environmental
Operating Temperature -20℃ to 50℃ (-4°F to 122°F）
Storage Temperature -40℃ to 70℃ (-40°F to 158°F)
Charge Temperature 0°C to 45°C (32°F to 113°F)
Humidity 5%~95% (non-condensing)
Electro Static Discharge (ESD) ±4 KV (direct discharge); ±12 KV (air discharge)
Drop 1.2m
IP Rating IP42
Software
Configuration Tools EasySet
Certifications
Hardware CE RED, CE UK, FCC, TELEC, IEC 62471, RoHS, IEC60825
